Luxury & Precision W4 Portable USB DAC/AMP

Categories: DAC/Amplifier, Portable DAC/AMPs Tags: amp, usb dac

Share:

Add to Wishlist

$449.00

Luxury & Precision W4 Port...

$449.00

50 in stock

Description

Basic Parameters

Model	W4
Color/Size/Weight	Phantom Gray / 63x24x12.5mm / 24g
Screen	0.91-inch OLED
Accessories	User manual x1 / Type-C to Type-C cable x1 / Type-C to Lightning cable x1 / USB-A to Type-C female adapter x1
SNR A-WT 20Hz-20kHz BW	Single-ended: 131db, Balanced: 135db
DR A-WT 20Hz-20kHz BW	Single-ended: 131db, Balanced: 135db
THD+NA-WT@32Ω 20Hz-20kHz BW	Single-ended: 0.0003%, Balanced: 0.00013%
THD+NA-WT@300Ω 20Hz-20kHz BW	Single-ended: 0.00025%, Balanced: 0.0001%

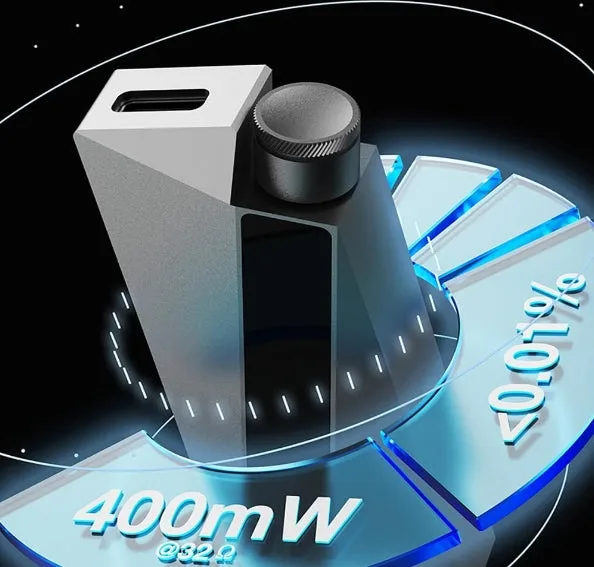

Output Power@32Ω THD+N<0.01%	Single-ended: 110mW, Balanced: 420mW
DAC	LP5108
Input Interface	Type-C USB female socket
Output Interface	3.5mm single-ended headphone jack/4.4mm high quality balanced headphone jack
Audio Format (PCM)	16/24/32bit/44,1kHz-374kHz
Audio Format (DSD)	Native DSD64/Native DSD128/Native DSD256
Supported Systems	iOS/macOS/Android/WIN/Linux

Functional Parameters

EQ	Normal/CLASS/JAZZ/ROCK/POP/BASS/MOVIE/GAME
SDF Tuning	Normal/Xelento/IE800S/SE846/IER-Z1R
Gain Adjustment	Supported HIGH/LOW
Digital Filter	FAST/SLOW/NOS/LL FAST/LL SLOW
HID Key	Supported
SPDIF Output	Supported
Firmware Upgrade	Supported
LP Tuning	Second-generation TUNE 01 / TUNE 02
